ELECTRIC PROPULSION THAT PAYS
Fleetzero manufactures marine energy storage systems that enable electric and hybrid systems to be more economic than traditional ships without subsidies, grants, or regulations.
LEVIATHAN MODULAR BATTERY ENERGY STORAGE SYSTEM

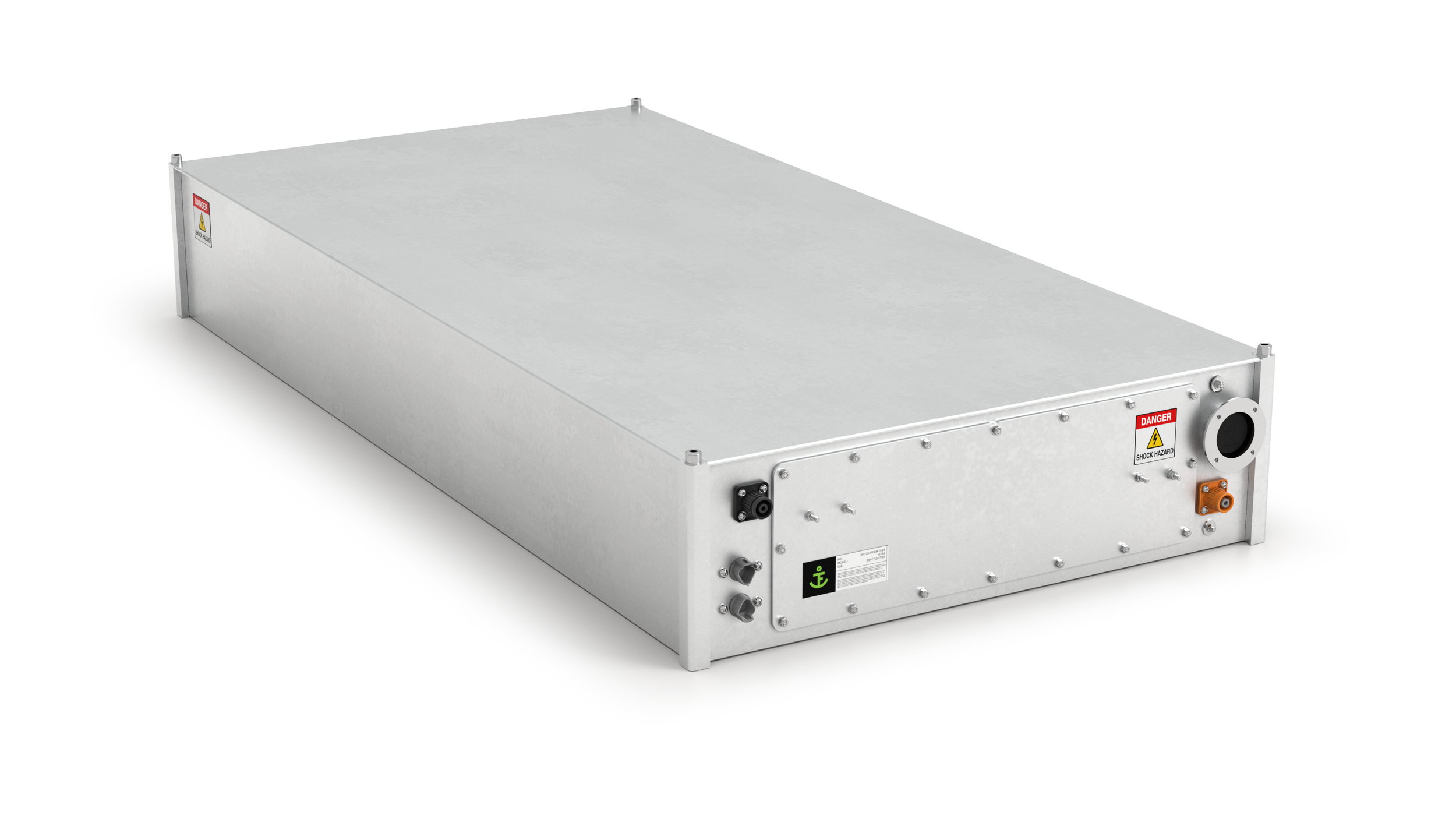

Leviathan Battery Module
The Fleetzero Leviathan 72.4 kWh battery is a next generation of Lithium Ion Phosphate (LFP) module. Designed to exceed ABS and DNV standards by combining the inherent safety of LFP chemistry and cell to cell thermal runaway protection in a high density format.

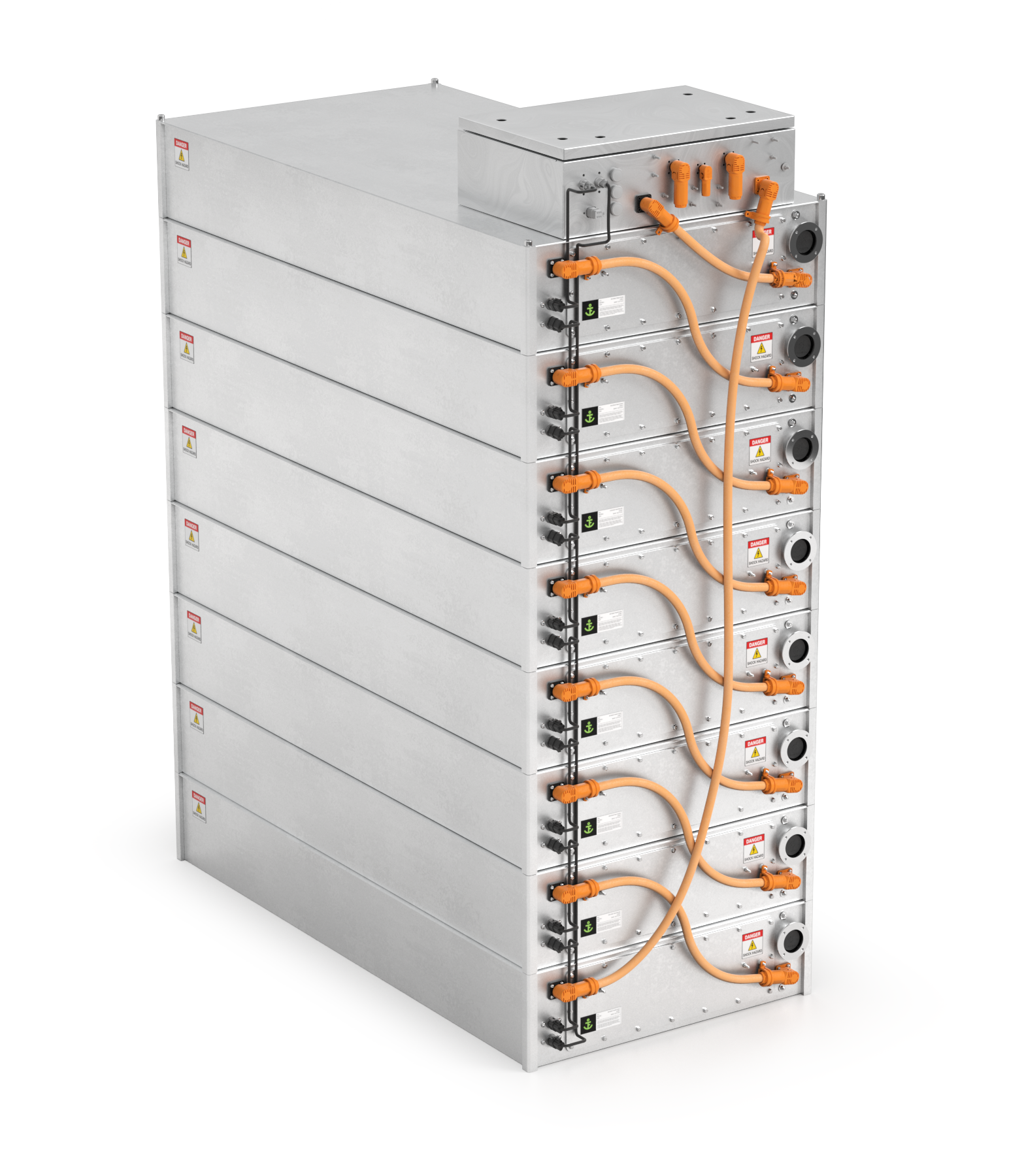

Leviathan Battery String
Built to exceed IP67 waterproofing standards and tested against high EMI environments. Rackless design maximizes installed energy density aboard vessels of all sizes. Energy capacity of 579 kWh.

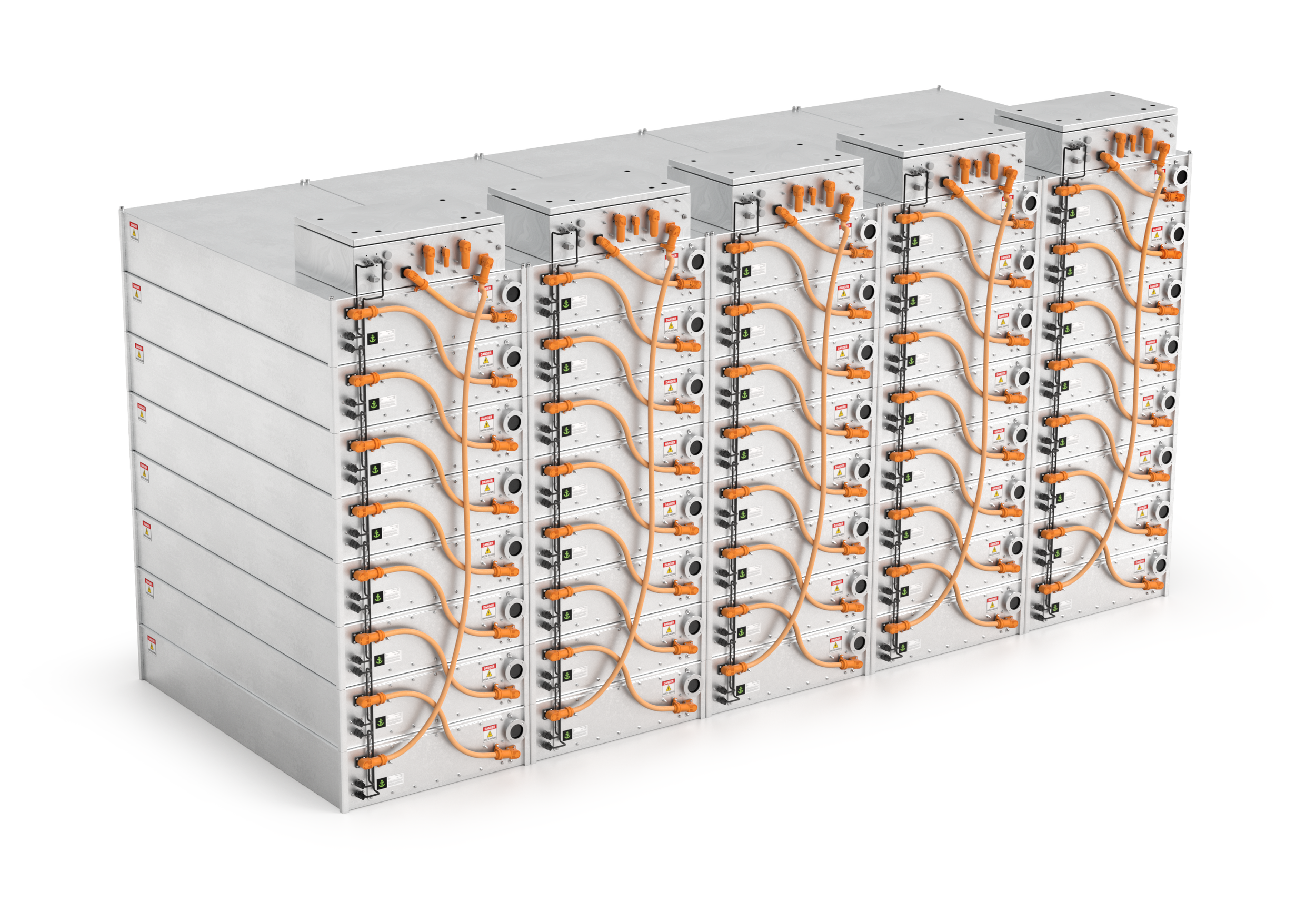

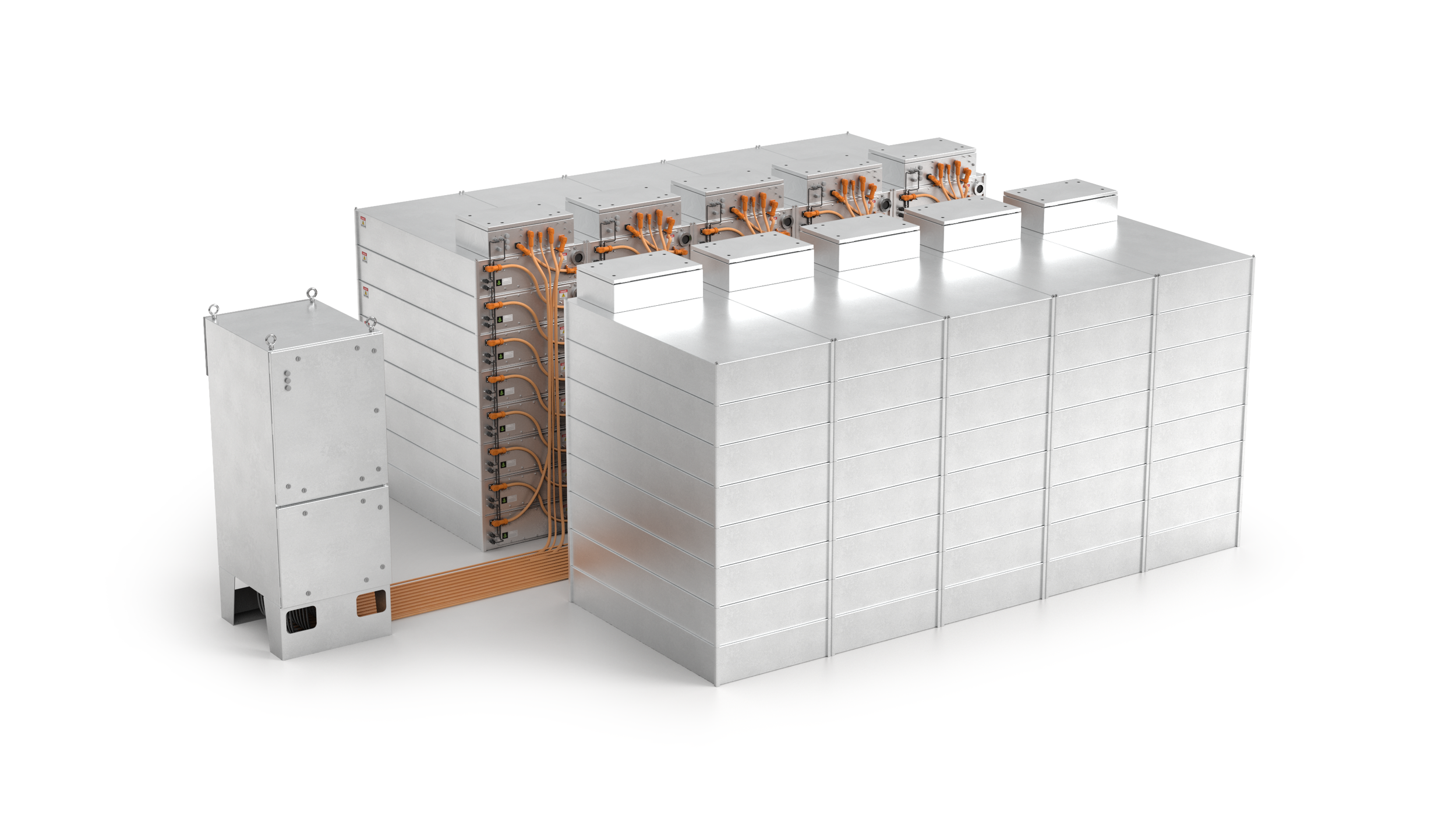

Leviathan Battery System
Our "Plug-and-Power" modularity allows you to scale from a single string to a multi-megawatt array without expanding switchboard footprint.
Fleetzero’s patent-pending Kraken DC-hub included in the Leviathan battery system enables integrators to design systems of any size from 1 to 10 strings with a single switchboard connection. This reduces switchboard costs by ~90%, installation and commissioning time compared to other marine batteries.
The Leviathan ESS Battery System comprises of up to ten 579 kWh strings, yielding 5.8 MWh, and an unlimited number of systems per vessel.
BUILDING BETTER BATTERIES
-
True cell-to-cell thermal runaway and fire prevention are provided by Fleetzero’s proprietary passive fire prevention system.
-
298 Wh/L Volumetric
145 Wh/kg Gravimetric
Densities are provided at the DC system level (module + string + pack).
-
Leviathan modules are scalable for systems sizes from 579 kWh to hundreds of Megawatt-hours of energy storage.
-
Optimized for high-energy and zero-emission operation of large vessels.
Configurable for high-power applications with 0.5+ C rates when installed with our liquid cooling system.
-
Designed by mariners and engineers from the world’s best automotive EV companies, Leviathan incorporates the best automotive EV technology but is fundamentally built for the unique challenges and requirements at sea.
Designed and tested in accordance with ABS, DNV, RINA, Lloyds, and ClassNK rules.
-
Leviathan contains no nickel, manganese, or cobalt, making it one of the most sustainable batteries in the world. We chose our battery chemistry to minimize the impact of mining and sourcing raw materials.
MARINE BATTERY CONTAINER
Designed to keep you and your crew moving forward, the Fleetzero Marine Battery Container packs 3.8MWh of energy into a half-height container. They are stackable and share the ability to integrate, ensuring your vessel has enough energy to complete routes worldwide.
SCALABLE SOLUTION, SMARTER SHIPPING
EXAMPLE CONFIGURATIONS
